Application and Feature:
Our double - twist strander is capable of twisting multi - strand bare copper, aluminum, and aluminum alloy wires, along with coated cored wires such as rubber wires, power wires, and control cables. There are several key differences between our model and others:
- It can achieve a line speed of up to 140 m/min.
- A high - tech temperature control system, combined with a powerful compressor, enables non - stop operation.
- The carbon - fibre bow part offers additional stiffness and lightness.
- An intelligent communication module reduces the number of circuits.
- The servo motor can save up to 15% of energy.
Technical specification:
| Specs/Model | DTE-1250D | DTE-1600D | DTE-2000D |
| Inlet wire diameter(mm) | Ø1.0-3.0 | Ø1.5-4.8 | Ø1.5-4.8 |
| Stranded section (1+6+12)(mm2) | 3.5-70 | 16-240 | 16-240 |
| Stranded section (1+6)(mm2) | 3.5-50 | 16-50 | 16-50 |
| Bunching section (Cu)(mm2) | 3.5-50 | 16-150 | 16-240 |
| Bunching section (Al)(mm2) | 3.5-70 | 16-240 | 16-300 |
| Max.stranded diameter(mm) | Ø10 | Ø25 | Ø35 |
| Max. Compression ratio | 85-90% | 85-90% | 85-90% |
| Max. Line speed (m/min ) | 70-150 | 170-200 | 170-200 |
| Rotation speed (rpm) | 800/max. | 500/max. | 350/max. |
| Pitch (mm) | 40-350 | 50-600 | 60-600 |
Production line composition:
Standard configuration includes:
1. Pay-off stand (normally 7-head up to 19-head)
2. Tension stand
3. Rotary wire assembly rack (where wires come together and form one strand)
4. Stranding host (which holds the take-up bobbin and where the actual rotation happens)
Terms and conditions:
- Price terms: FoB, C&F or CIF
- Production period: 60-90 days
- Warranty: 1 year except for man-made damages
Support and Services:
The Double Twist Stranding Machine is a high-performance piece of equipment designed to provide efficient stranding of wires and cables. Our product technical support and services include:
- Installation and commissioning of the machin
- Training for operators and maintenance personnel
- Regular maintenance and repair services
- Supply of spare parts and components
- Technical troubleshooting and problem-solving
- Upgrades and customization services
- 24/7 customer support and assistance
Our team of experienced engineers and technicians is committed to providing you with the best possible support and services to ensure your Double Twist Stranding Machine operates at peak performance levels and meets your production needs.

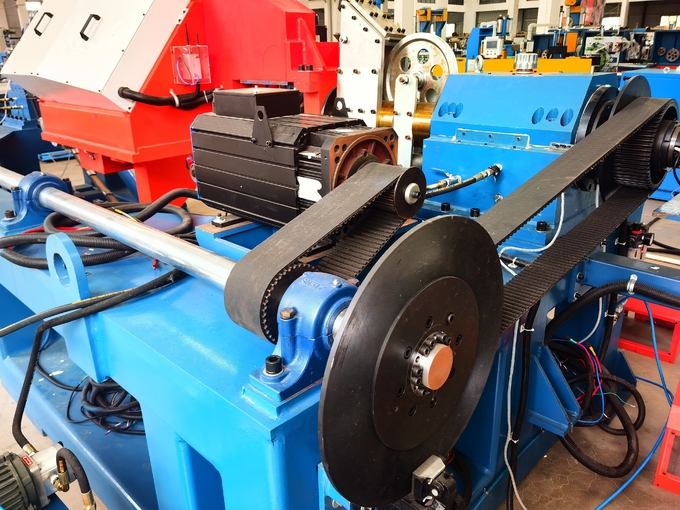

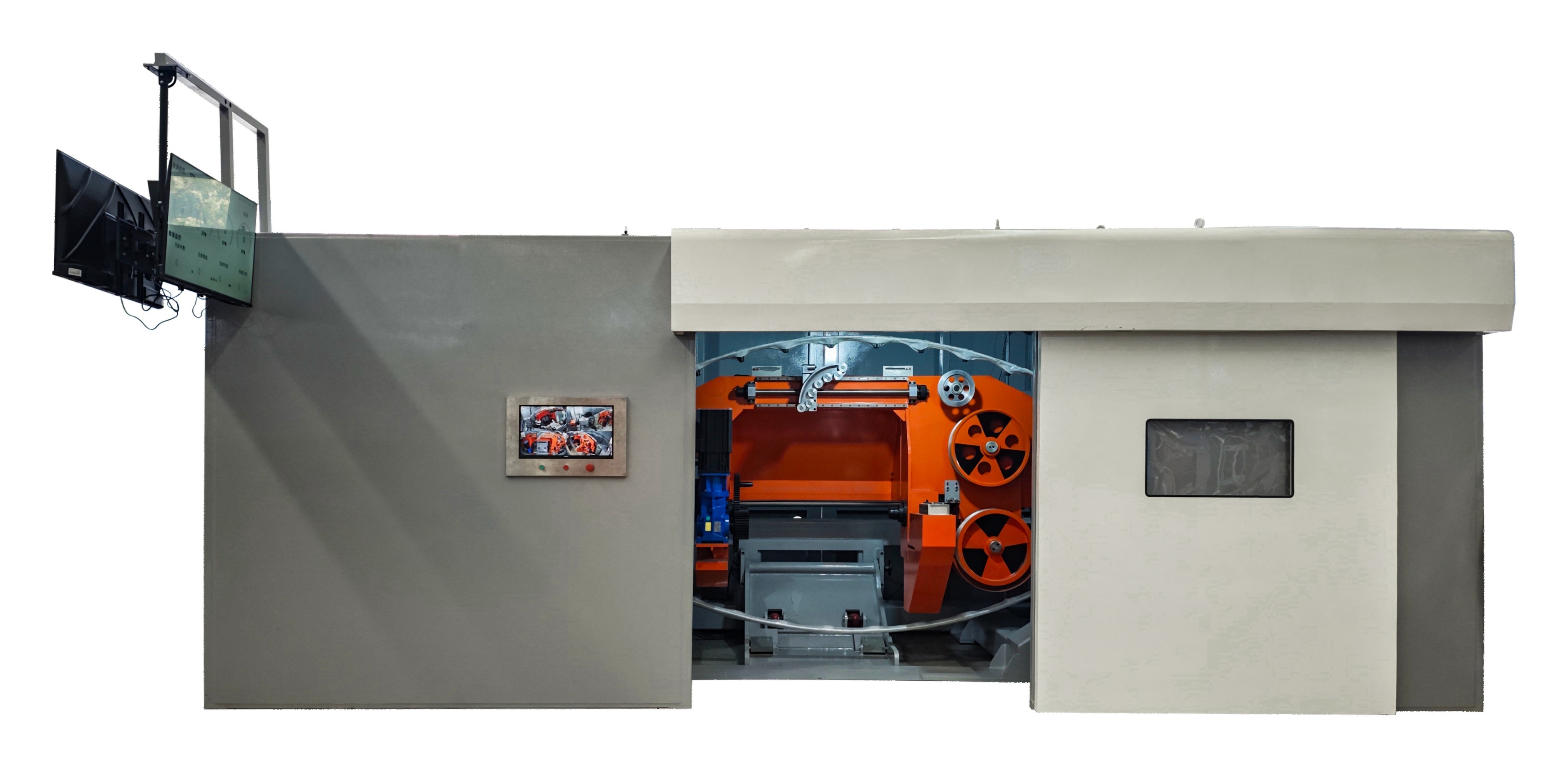

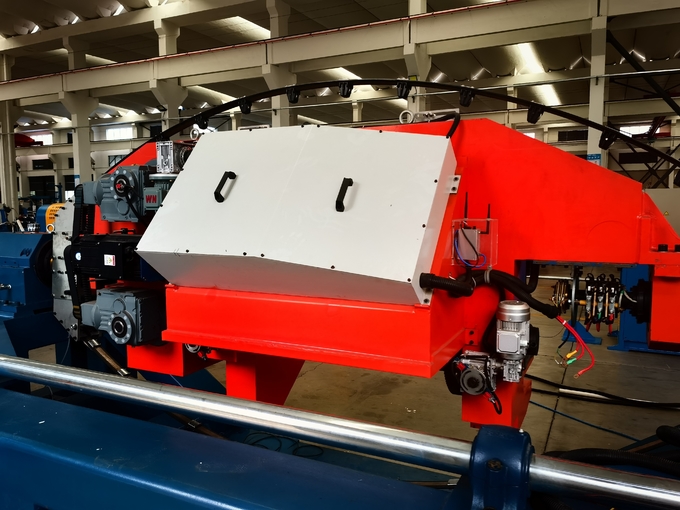

More Images:
